Concealed hinges for surface mounted doors or nested doors
- For nested doors or surface mounted doors.
- For horizontal applications mainly.
- 90° opening max.
Door thickness max. 20mm.
Minimal gap of 0.5 to 1.5mm between door and frame.
Concealed hinge C - 90° opening
Main features:- For nested doors or surface mounted doors.
- For horizontal applications mainly.
- 90° opening max.
Door thickness max. 20mm.
Minimal gap of 0.5 to 1.5mm between door and frame.

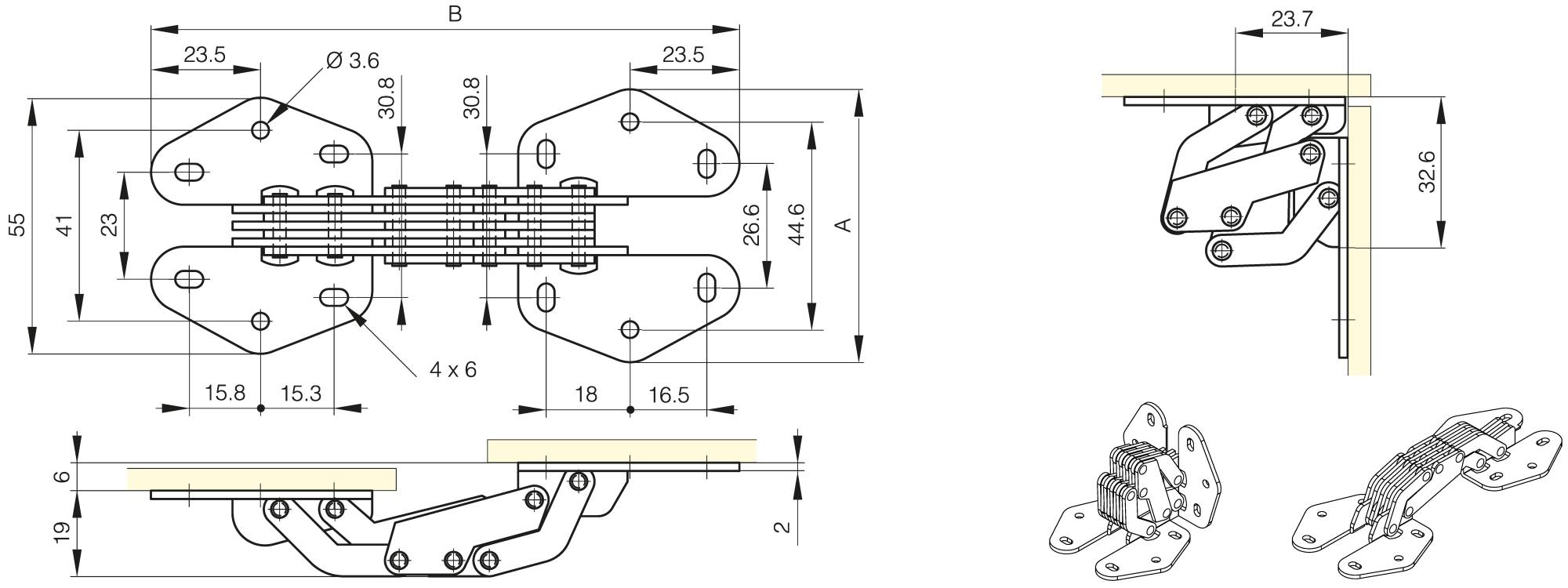

![Charnière invisible - ouverture 90° type C](https://www.pinet-industrie.com/images/cache/image_xxl/images/category/7013626_plan.jpg)
