Concealed springloaded pin hinges A

Concealed hinges for nested doors only

Concealed springloaded pin hinges A

Stainless steel spring.
Hinges in raw steel and zinc plated steel with a zinc plated pin.
304 stainless steel pin for hinges in stainless steel.
Circlip in 1.4122 stainless steel.

Quotation request

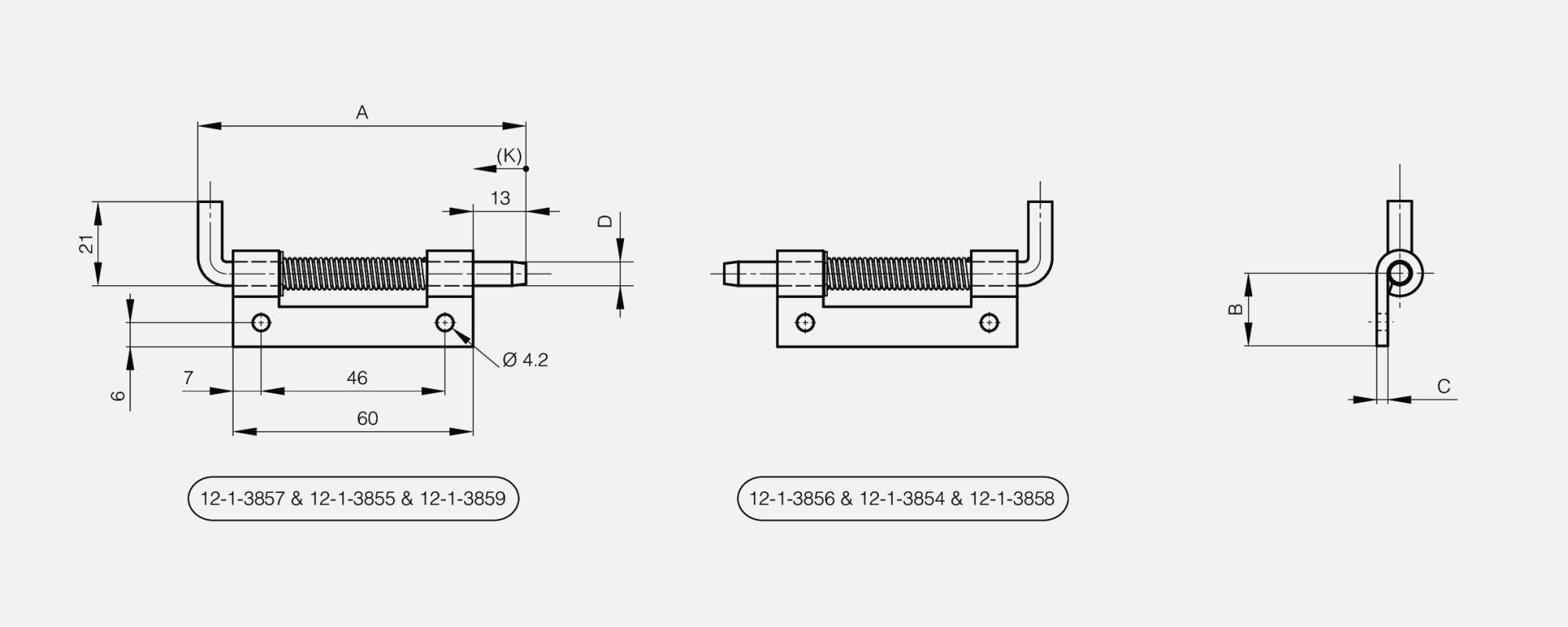

12-1-3856 Replaced by 12-1-4312

12-1-3857 Replaced by 12-1-4313

12-1-3854 Replaced by 12-1-4310

12-1-3855 Replaced by 12-1-4311

12-1-3858 Replaced by 12-1-4314

12-1-3859 Replaced by 12-1-4315

Part number

Material

Finish

Note

Weight (g)

Sheet	cao	Stock

12-1-3856

steel

raw

82 mm

18.2 mm

2.8 mm

type 2

46 g

12-1-3857

steel

raw

82 mm

18.2 mm

2.8 mm

type 1

46 g

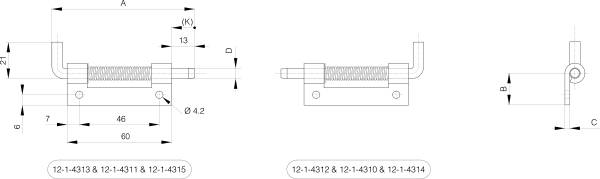

12-1-4312

steel

raw

82 mm

18.2 mm

3 mm

type 2

46 g

12-1-4313

steel

raw

82 mm

18.2 mm

3 mm

type 1

46 g

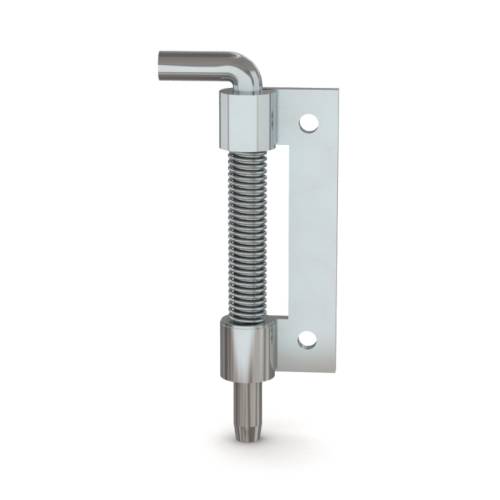

12-1-4310

steel

zinc plated

82 mm

18.2 mm

3 mm

type 2

46 g

12-1-4311

steel

zinc plated

82 mm

18.2 mm

3 mm

type 1

46 g

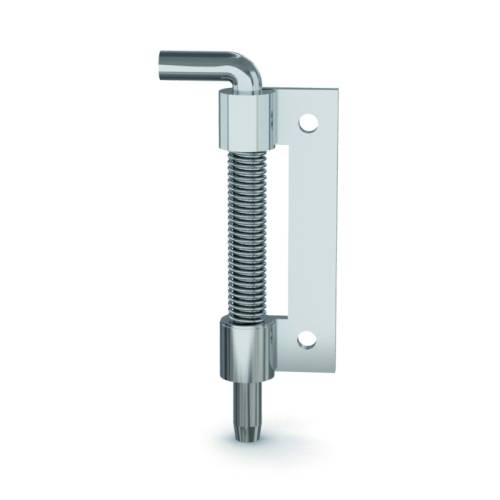

12-1-4314

304 stainless steel

raw

82 mm

18.2 mm

3 mm

type 2

46 g

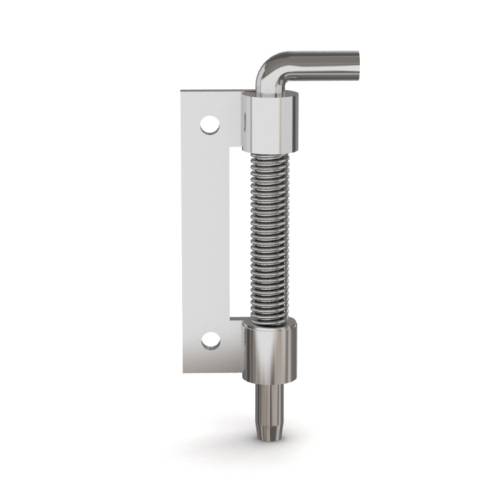

12-1-4315

304 stainless steel

raw

82 mm

18.2 mm

3 mm

type 1

46 g
