Concealed hinges for surface mounted doors or nested doors
Tested to 10,000 cycles using 2 hinges with a door weight of 30 kg measuring 800mm x 600mm.
Links in anodised aluminium.
For each part number, the oblong holes position is different.
Please ask us for more information.

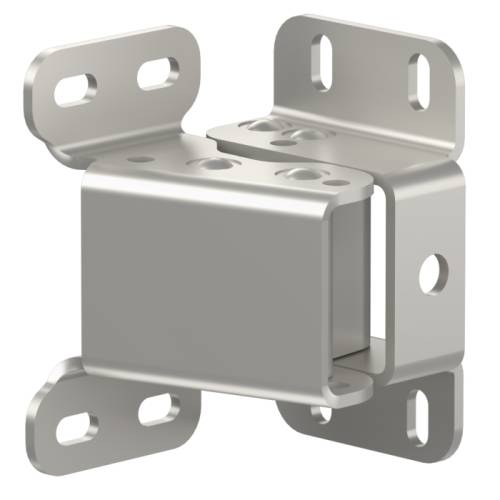

Concealed hinge - 110° opening
Heavy duty concealed hinge.Tested to 10,000 cycles using 2 hinges with a door weight of 30 kg measuring 800mm x 600mm.
Links in anodised aluminium.

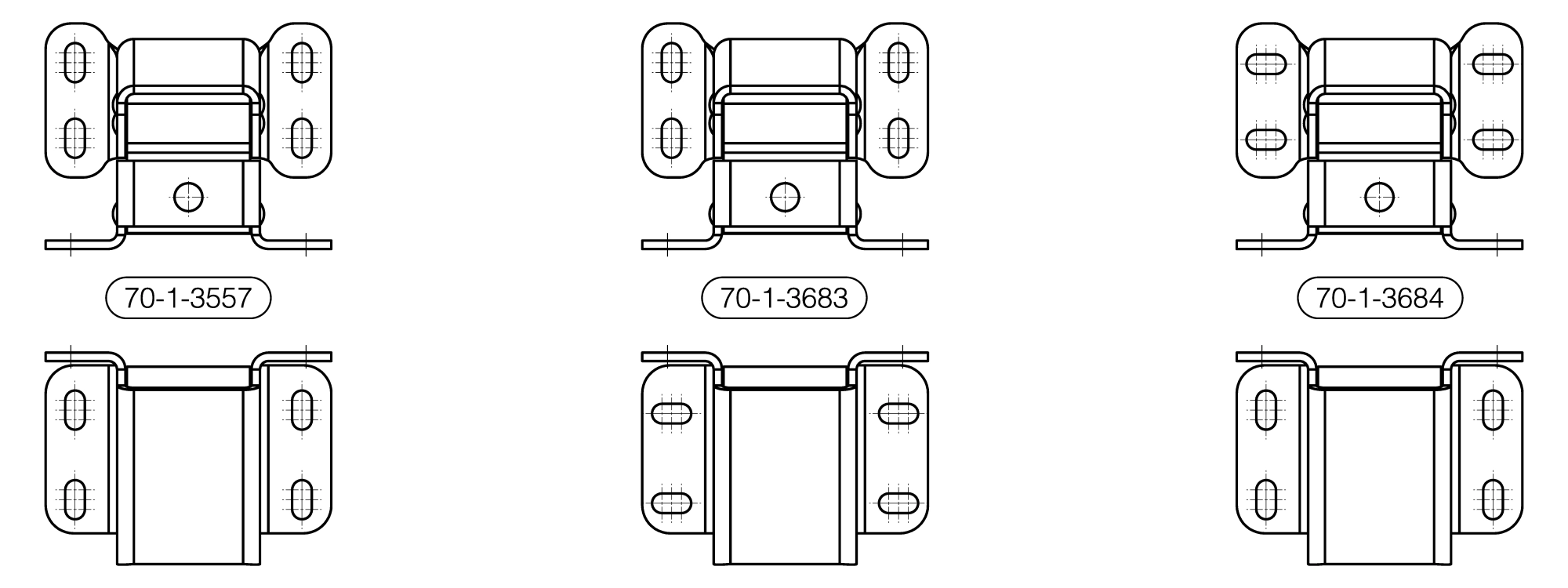

For each part number, the oblong holes position is different.
Please ask us for more information.
Concealed hinge - 110° opening
Part number : 70-1-3557
| Quantity | Unit price |
| -2583 | 31.15 € excl. taxes |
To order, register or login click on
Log inConcealed hinge - 110° opening
Part number : 70-1-3683
| Quantity | Unit price |
| 625 | 31.15 € excl. taxes |
To order, register or login click on
Log inConcealed hinge - 110° opening
Part number : 70-1-3684
| Quantity | Unit price |
| 605 | 31.15 € excl. taxes |
To order, register or login click on
Log in
