Polymer hinges with pin
UL 94 V-0 classification: please contact us.
White color: please contact us.

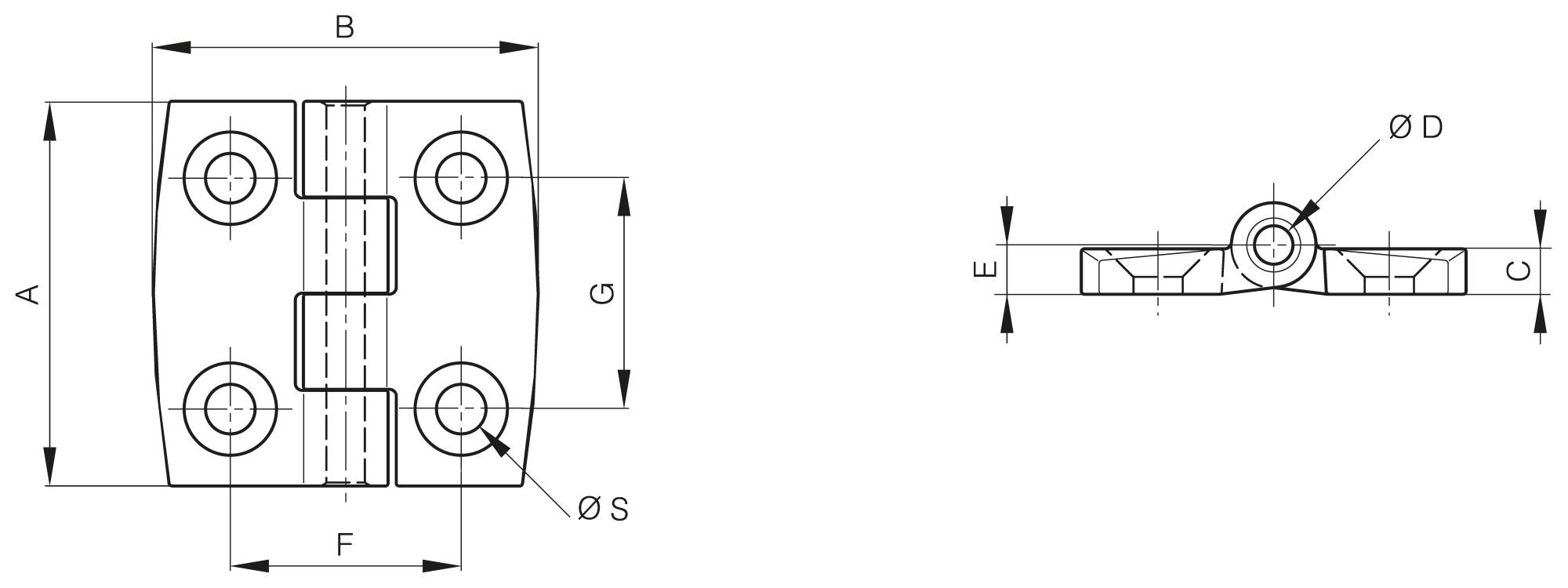

Square design hinges with countersunk holes
Hinges are made of 30% GF polyamide, pins are in 316L stainless steel.UL 94 V-0 classification: please contact us.
White color: please contact us.
54-1-3513 Replaced by 54-1-3564
54-1-3514 Replaced by 54-1-3565
54-1-3516 Replaced by 54-1-3566
54-1-3518 Replaced by 54-1-3567
| Axial load | Radial load | Load with 90° angle | |
|---|---|---|---|
| Tensile tests |  |
 |
 |
| References | Maximum load (N) | Maximum load (N) | Maximum load (N) |
| 54-1-3564 | 1397 | 1541 | 394 |
| 54-1-3565 | 2248 | 3032 | 1635 |
| 54-1-3566 | 3043 | 3431 | 1358 |
| 54-1-3567 | 4519 | 6624 | 1486 |
The values stated are derived from the tests carried out by PINET according to the conditions mentioned in the link below.This does not replace in any way the calculations or validation tests that the customer must make on his application with the hinge.
Test conditions and protocols
