Polymer hinges with pin
UL 94 V-0 classification: please contact us.
White color: please contact us.

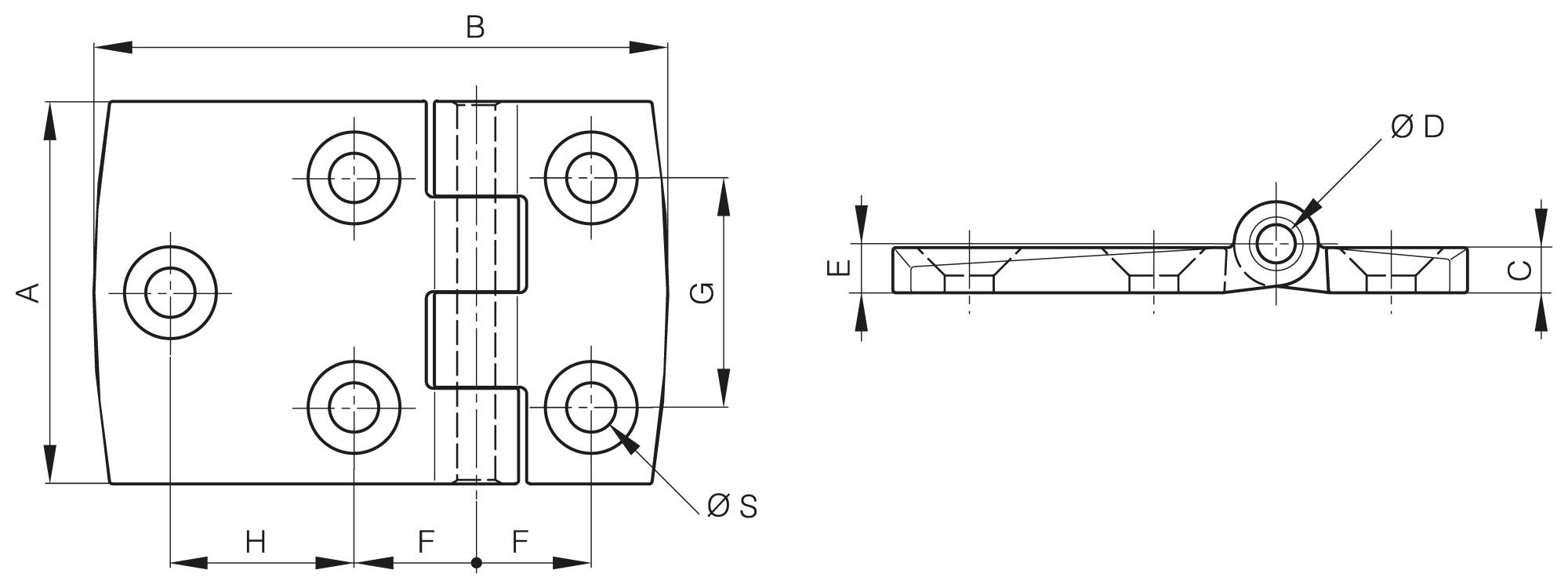

Asymmetrical design hinges
Hinges are made of 30% GF polyamide, pins are in 316L stainless steel.UL 94 V-0 classification: please contact us.
White color: please contact us.
54-1-3528 Replaced by 54-1-3573
54-1-3536 Replaced by 54-1-3574
54-1-3538 Replaced by 54-1-3575
54-1-3532 Replaced by 54-1-3576
| Axial load | Radial load | Load with 90° angle | |
|---|---|---|---|
| Tensile tests |  |
 |
 |
| References | Maximum load (N) | Maximum load (N) | Maximum load (N) |
| 54-1-3576 | 4775 | 6371 | 1447 |
The values stated are derived from the tests carried out by PINET according to the conditions mentioned in the link below.This does not replace in any way the calculations or validation tests that the customer must make on his application with the hinge.
Test conditions and protocols
