Polymer hinges with pin
UL 94 V-0 classification: please contact us.
White color: please contact us.

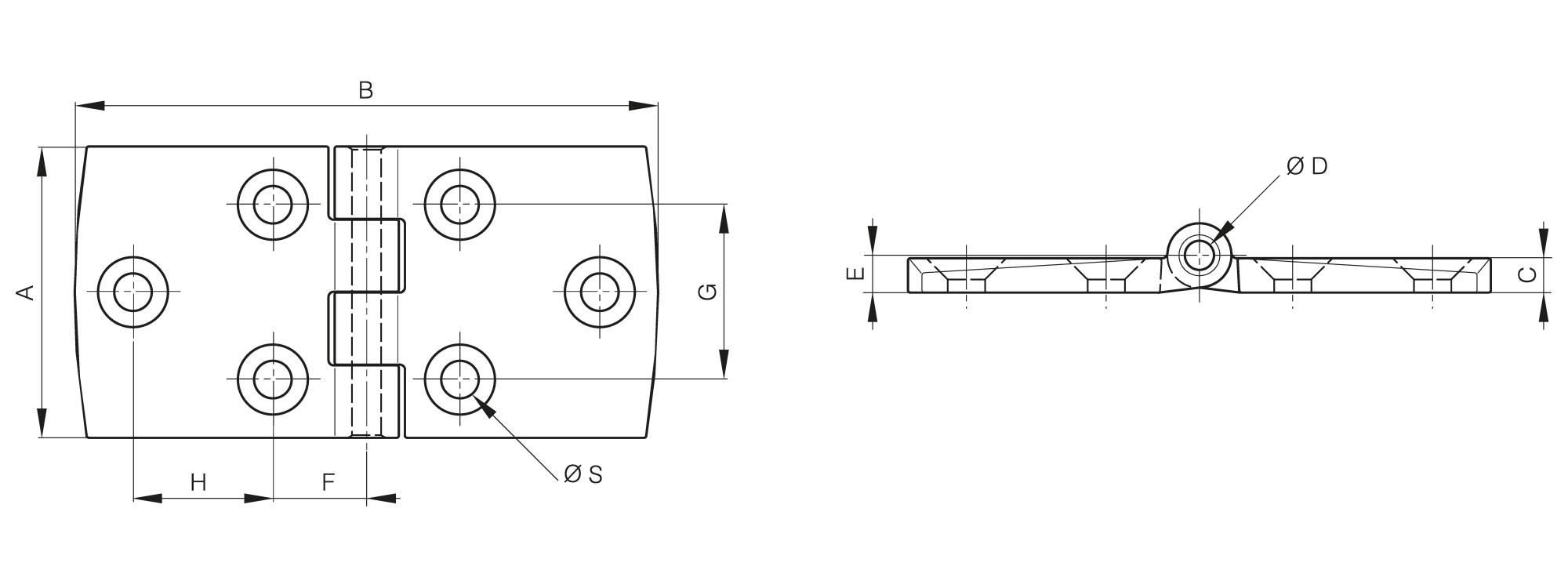

Symmetrical design hinges
Hinges are made of 30% GF polyamide, pins are in 316L stainless steel.UL 94 V-0 classification: please contact us.
White color: please contact us.
54-1-3520 Replaced by 54-1-3569
54-1-3522 Replaced by 54-1-3570
54-1-3540 Replaced by 54-1-3571
54-1-3524 Replaced by 54-1-3572
| Axial load | Radial load | Load with 90° angle | |
|---|---|---|---|
| Tensile tests |  |
 |
 |
| References | Maximum load (N) | Maximum load (N) | Maximum load (N) |
| 54-1-3569 | 2397 | 2673 | 670 |
| 54-1-3571 | 3965 | 4048 | 1125 |
| 54-1-3572 | 4405 | 5988 | 1484 |
The values stated are derived from the tests carried out by PINET according to the conditions mentioned in the link below.This does not replace in any way the calculations or validation tests that the customer must make on his application with the hinge.
Test conditions and protocols
