Detent hinges

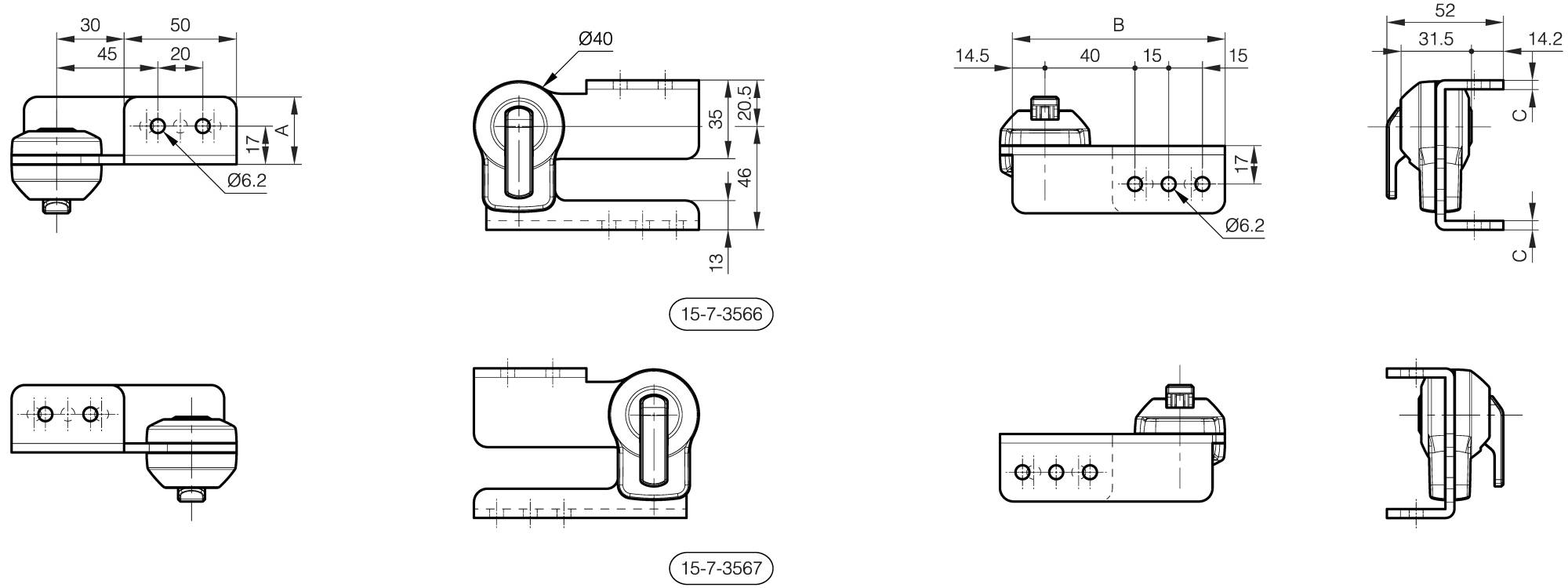

Multi angle locking hinge A with lever

Easily adjusts the flap angle by toggling the lever.
Lock allows the hinge to be held in position from 0° to 180° in 10° increments.
The flap is temporarily unlocked while the lever is pushed.
The flap stays unlocked when the lever is lifted.
Hinge can be used with free axis hinge A (15-7-3568 or 15-7-3569).
Lever, pin, cover: plastic.
Recommended screws: M5.
Unlocking torque: 45 N.m.
