Polymer hinges with pin
Pin: 303 stainless steel.
Cycling test : hinge is functional after 10.000 cycles (open/close) for a 80 kg door (dimension 1500 (H) x 750 (W) mm).

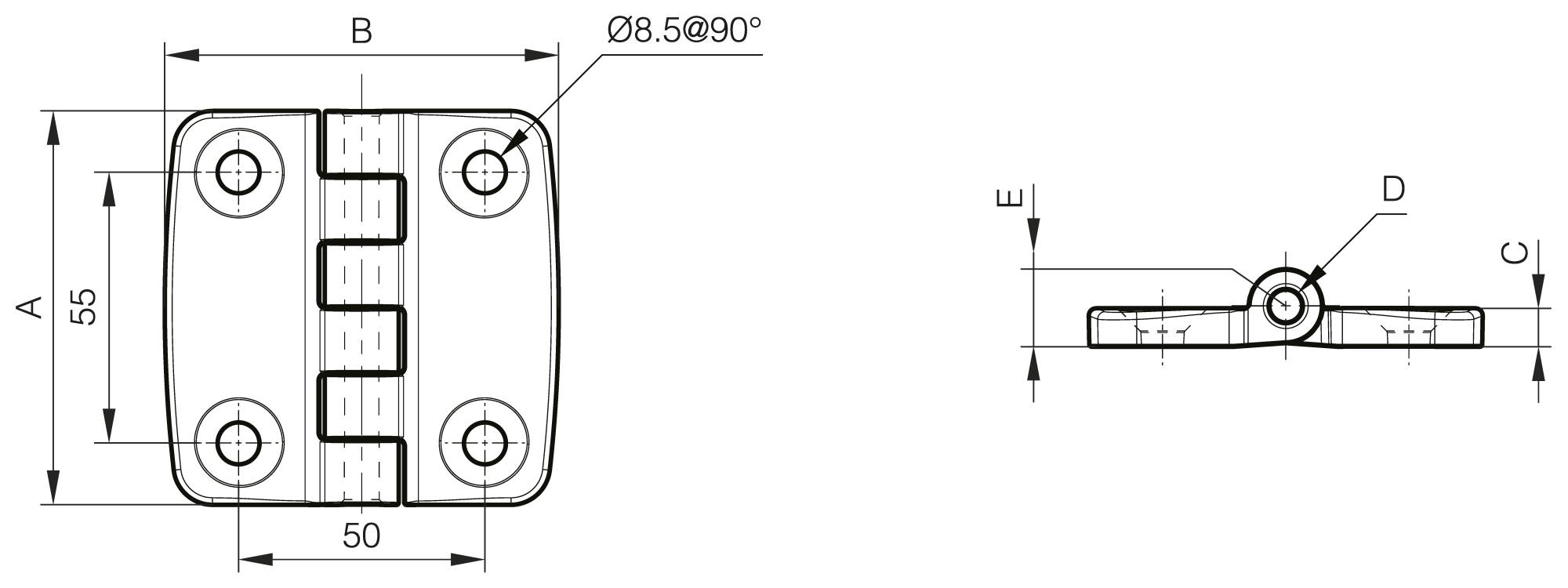

4-hole square polyamide hinge with carbon fibre
Hinge is made of 30% carbon fiber 6.6 PA.Pin: 303 stainless steel.
Cycling test : hinge is functional after 10.000 cycles (open/close) for a 80 kg door (dimension 1500 (H) x 750 (W) mm).
| Axial load | Radial load | Load with 90° angle | |
|---|---|---|---|
| Tensile tests |  |
 |
 |
| References | Maximum load (N) | Maximum load (N) | Maximum load (N) |
| 54-1-3555 | 8672 | 8893 | 1801 |
The values stated are derived from the tests carried out by PINET according to the conditions mentioned in the link below.This does not replace in any way the calculations or validation tests that the customer must make on his application with the hinge.
Test conditions and protocols
