Polymer hinges with pin

6-hole square polyamide hinges with carbon fiber

Hinges are made of 30% carbon fiber 6.6 PA.
Pin: 303 stainless steel.
Quotation request
Part number
Load Stock

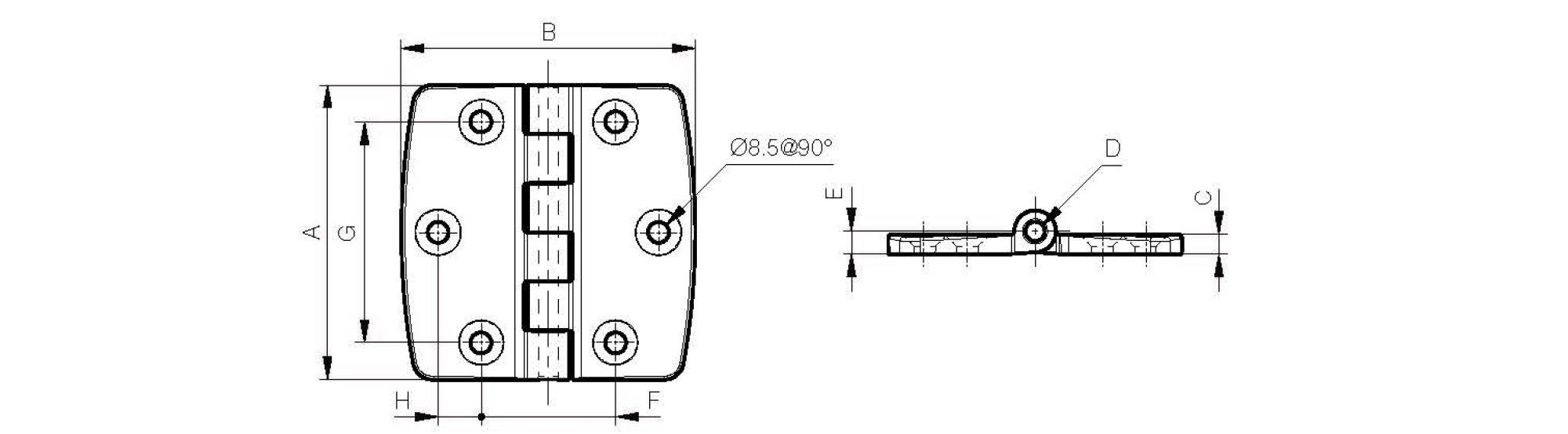

Material Finish A B C D E F G H Pin material Weight (g)
Sheet cao Load Stock
Scroll horizontally
Quadratisches-Polyamid-Scharnier mit Carbonfaserfüllung und 6 Bohrungen
Axial load Radial load Load with 90° angle
Tensile tests Maximum load (N) Maximum load (N) Maximum load (N)
References Maximum load (N) Maximum load (N) Maximum load (N)
54-1-3558 10898 10170 3350
54-1-3561 10000 11269 3120
Test conditions and protocols
