Quarter turn
2 cams available (sold separately):
16-1-4227: flat cam (H18 L35).
16-1-4229: cranked cam (H11 L50). Same came can be used upside down for H25.
Cut-out: 19.5 x 23.1 mm.
Door thickness: max. 12.5 mm.
Material: wing knob in black PA, housing in zinc die-cast, key / cylinder / cam in steel, nut in brass.

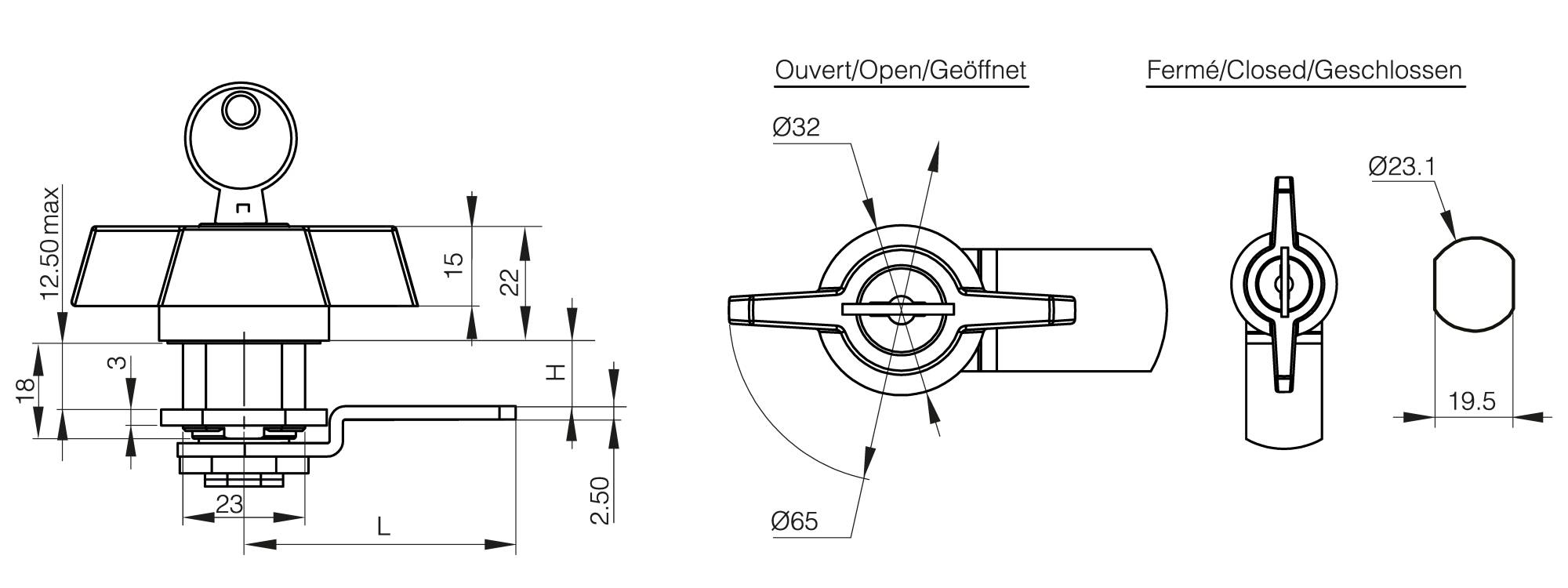

Quarter turn with wing knob
16-1-4226: key 455 E, supplied with 2 keys.2 cams available (sold separately):
16-1-4227: flat cam (H18 L35).
16-1-4229: cranked cam (H11 L50). Same came can be used upside down for H25.
Cut-out: 19.5 x 23.1 mm.
Door thickness: max. 12.5 mm.
Material: wing knob in black PA, housing in zinc die-cast, key / cylinder / cam in steel, nut in brass.
