Concealed hinges for surface mounted doors or nested doors

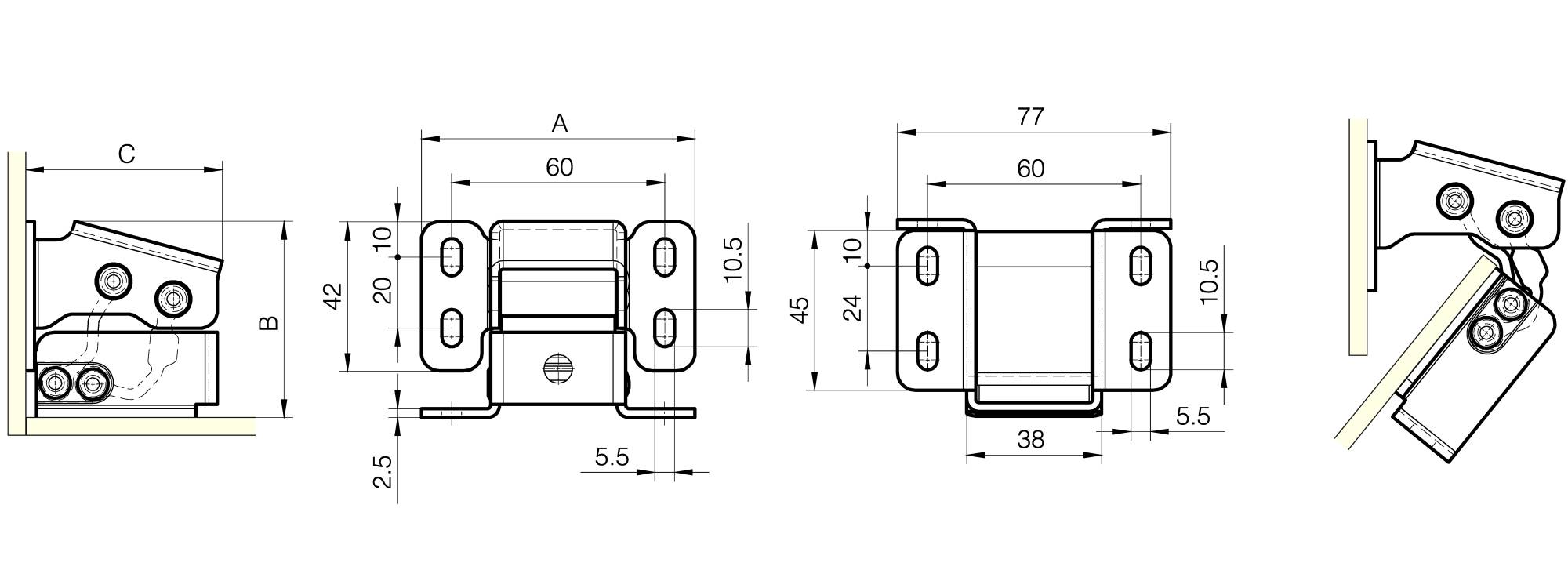

Concealed hinges (size M) - 125° opening

Links in aluminium.
Pins in zinc plated steel for 70-1-3647.
Pins in 304 Cu stainless steel for 70-1-3648.

Mounting features:
- For nested doors or surface mounted doors.
- LH or RH options.
- For horizontal or vertical applications.

Opening angle differs according to door thickness:
- For thickness up to 10 mm: opening angle of 125°.
- 15 mm thickness: opening angle of 115°.
- 20 mm thickness: opening angle of 108°.
Please ask us for bespoke solutions.
