Rectangular hinges

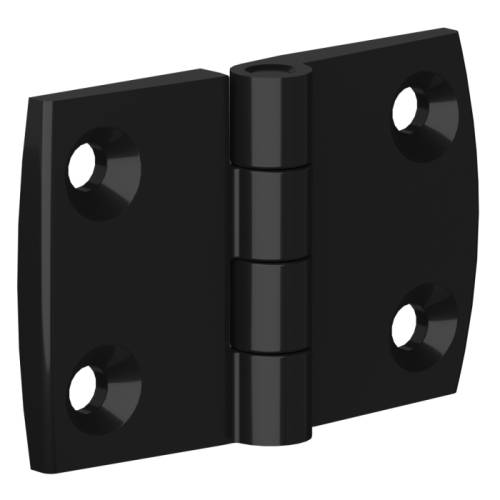

Design zinc die-cast hinge

Pin: 304 stainless steel.
Quotation request
Part number
Load Stock

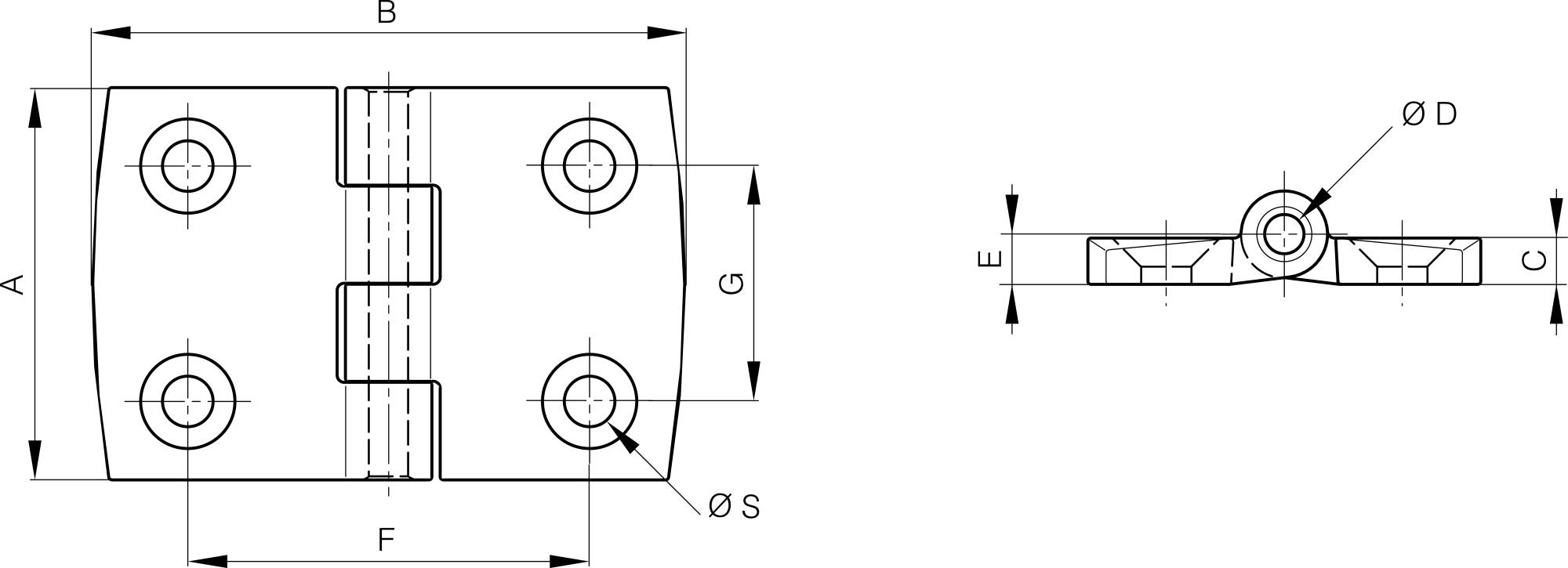

Material Finish A B C D E F G S Weight (g)
Sheet cao Load Stock
Scroll horizontally
Design-Scharniere aus Zamak
Axial load Radial load Load with 90° angle
Tensile tests Maximum load (N) Maximum load (N) Maximum load (N)
References Maximum load (N) Maximum load (N) Maximum load (N)
72-1-4441 11243 10744 2638
Test conditions and protocols
